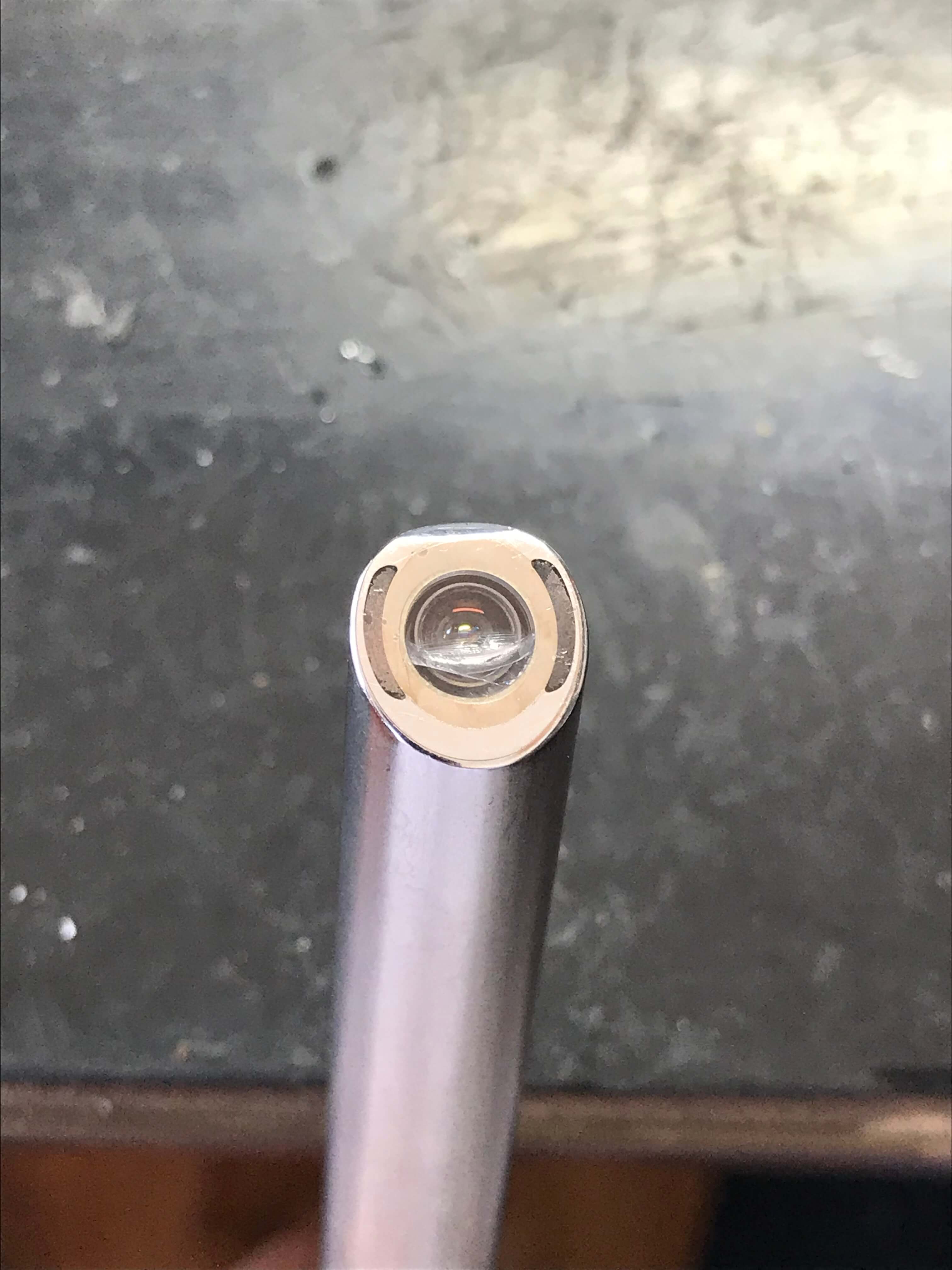

內窺鏡攝像機工作原理為：光源發出的光通過傳光束(光纖)，經內窺鏡主體，傳遞到人體內部，照亮人體內腔組織需要檢查的部分，物鏡將待檢查的部分成像在面陣CCD上，由CCD驅動電路控制CCD采集圖像，輸出標準視頻信號。調節機構用于調節內窺鏡前端的觀察角度，可上下調節、左右調節和旋轉調節。

The working principle of the endoscope camera is: the light emitted by the light source is transmitted to the interior of the human body through the transmission beam (optical fiber) through the main body of the endoscope to illuminate the part of the inner cavity tissue of the human body that needs to be inspected. The objective lens images the part to be inspected on the area CCD, and the CCD is controlled by the CCD driving circuit to collect the image and output the standard video signal. The adjusting mechanism is used to adjust the observation angle of the front end of the endoscope, which can be adjusted up and down, left and right and rotated.

內窺鏡攝像機由控的制器和應用部分組成。應用部分包括：內窺鏡接口適配器和攝像頭。與內窺鏡配合使用，用于微創外科術。內窺鏡攝像機可將圖像從內窺鏡傳輸到醫學監的視器上。

The endoscope camera is composed of controller and application part. The application part includes: endoscope interface adapter and camera. It is used in combination with endoscope for minimally invasive surgery. The endoscope camera can transmit images from the endoscope to the medical monitor.

內窺鏡攝像機具有以下特點：擁有非常豐富的數字，模擬接口，屏幕觀看幾乎沒有死角，拍攝影像，顏色不是真，感光系統可以保持無論何種環境的變化，長久使用拍攝時屏幕亮度都會保持不變，顯示色彩更豐富，更真實，保持原色不變，同時攝像機還具有防塵防水設計，方便表面清潔以及機器的運轉。

The endoscope camera has the following characteristics: it has a very rich digital and analog interface, there is almost no dead angle for screen viewing, the color of the captured image is not true, the photosensitive system can maintain the brightness of the screen no matter what the change of the environment, the screen brightness will remain unchanged for long-term use, the display color is richer and more realistic, and the primary color remains unchanged. At the same time, the camera also has dust-proof and waterproof design, Facilitate surface cleaning and machine operation.

醫用內窺鏡攝像機的組成：主要由三大部分組成：物鏡(內窺鏡:硬管鏡和軟管鏡);電耦合器CCD3.醫用監的視器;冷光源及控制主機，另外可以加配電腦及采集卡,實現圖像采集及存儲功能物鏡，指的就是內窺鏡，這里主要拿硬管鏡和軟管鏡來講述。醫用內窺鏡攝像系統哪里生產廠家好?還有哪些疑問可直接與利昂客服聯系。

Composition of medical endoscope camera: it is mainly composed of three parts: objective lens (endoscope: hard tube mirror and hose mirror); Electric coupler ccd3 Medical monitor; Cold light source and control host. In addition, it can be equipped with computer and acquisition card to realize image acquisition and storage. Objective lens refers to endoscope. Here it is mainly described with hard tube mirror and hose mirror. Where is the manufacturer of medical endoscope camera system? If you have any questions, please contact Leon customer service directly.

內窺鏡攝像機成像顯示系統特別提到在連接硬管鏡或軟管鏡時需要使用的光學接口，有標準C型防水變焦光學接口、標準C型防水硬直通光學幾口等等。在選擇的內窺鏡攝像機設備上，對于系統參數輸入接口、輸出接口、分辨率、音頻、電源供應、安裝方式、規格尺寸等等，在訂購時候都要看下，以及安裝上要進行調試。

The imaging display system of endoscope camera specially refers to the optical interface that needs to be used when connecting hard tube mirror or hose mirror, including standard C-type waterproof zoom optical interface, standard C-type waterproof hard through optical port, etc. On the selected endoscope camera equipment, the system parameter input interface, output interface, resolution, audio, power supply, installation mode, specification and size, etc. shall be checked when ordering, and the installation shall be debugged.

此外內窺鏡設備維修人員提醒您在選擇內窺鏡攝像系統生產廠家上，建議多看幾個廠商，如果您還有問題沒解決好的話那就來關注我們的網站www.rxjhq.cn吧。

In addition, the maintenance personnel of endoscope equipment remind you that when choosing the manufacturer of endoscope camera system, it is recommended to see more manufacturers. If you still have problems to be solved, please pay attention to our website.
